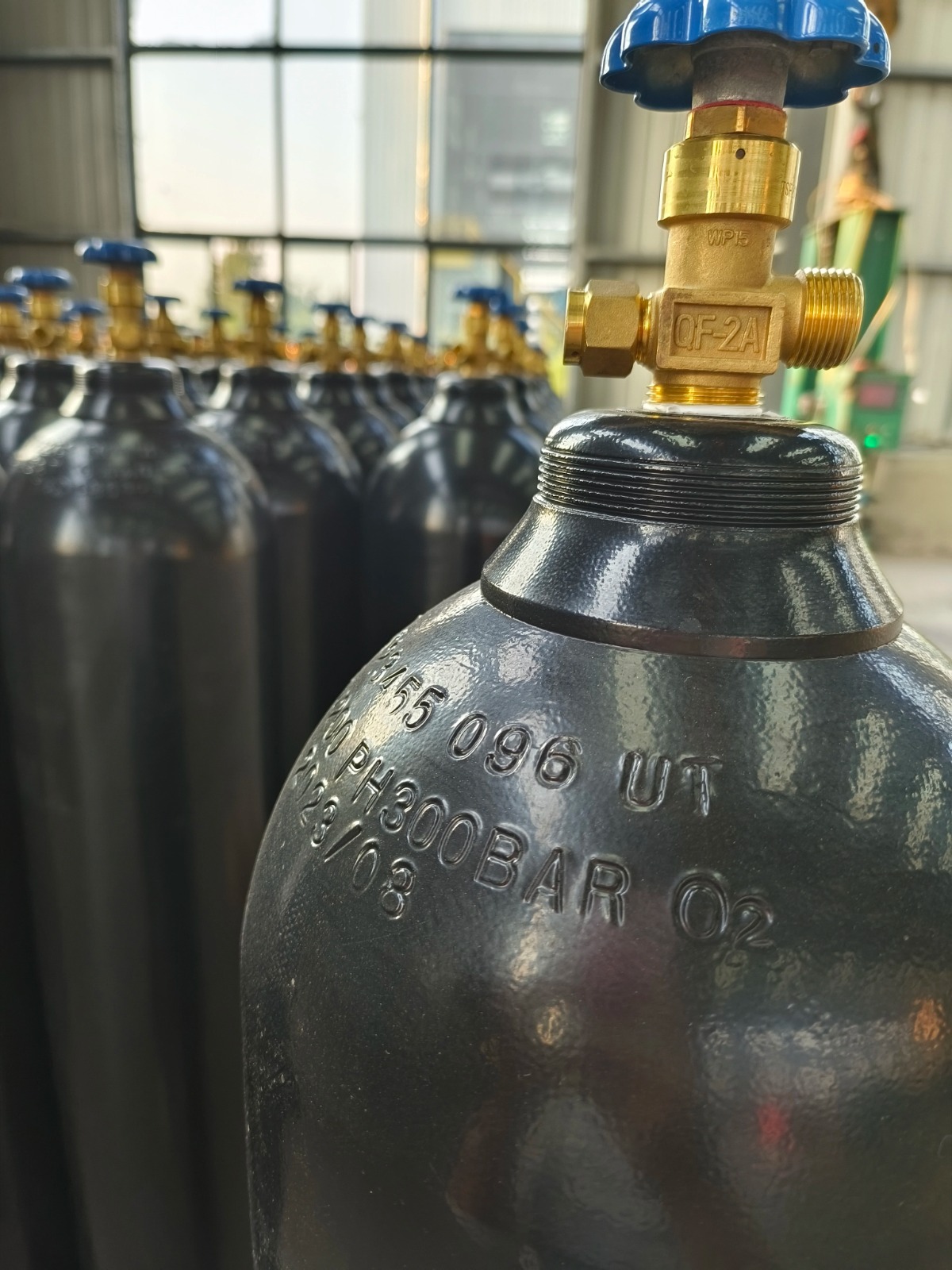

Top-Quality Industrial Oxygen Gas Cylinder ISO9809 Standard Empty Oxygen Gas Cylineder

Physical Characteristics:

1. Weight: 53.2 kg (empty)
2. Height: 1340 mm (52.8 in)
3. Diameter: 406 mm (16 in)
4. Volume: 45.4 liters (12.0 gallons)
5. Material: Steel
6. Thickness: 3.5 mm (0.138 in)
7. Valve type: Manual shut-off valve

Dimensions:

1. Length: 1340 mm (52.8 in)
2. Width: 406 mm (16 in)
3. Height (with valve): 1440 mm (56.7 in)

Technical Specifications:

1. Design pressure: 200 bar (2900 psi)
2. Test pressure: 250 bar (3625 psi)
3. Working temperature: -20°C to 50°C (-4°F to 122°F)

Empty Cylinder Requirements:

1. Residual pressure: ≤ 5 bar (72.5 psi)
2. Residual gas content: ≤ 5% of cylinder capacity
3. Valve condition: Fully closed and secure
4. Cylinder cleanliness: Free from contamination and debris

Inspection and Testing:

1. Visual inspection for damage or corrosion
2. Hydrostatic testing every 5 years
3. Valve inspection and maintenance every 2 years

Certifications and Compliance:

1. Compliant with local and international regulations
2. Meet requirements of ISO 4706, EN 1964, and AS 2030
3. Certified by third-party inspection agencies

Labeling and Marking:

1. Cylinder ID and serial number
2. Manufacturer’s name and logo
3. Capacity and design pressure
4. Warning labels and safety instructions

Packaging and Transportation:

1. Secured on pallets or in crates
2. Protected from damage and weather
3. Compliant with transportation regulations

South African Specific Requirements:

1. Compliance with South African National Standards (SANS) for gas cylinders
2. Registered with the South African Department of Labour
3. Meet requirements of the Occupational Health and Safety Act (Act 85 of 1993)

Note: These specifications may vary depending on the specific requirements of buyers, exporters, or regulatory bodies.

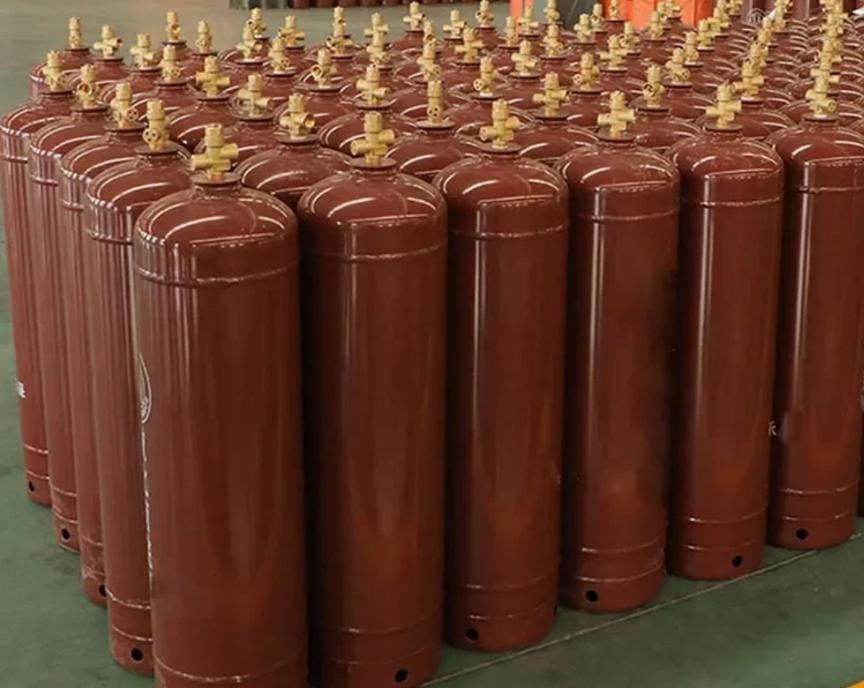

Packaging Details: Each cylinder will be packed with two pieces of woven plastic mesh, then 20 cylinders are packed with a plywood pallet, but there will be 60 pieces that will not be packed onto the plywood pallet.
